Power Units for Industrial Applications

High-performance cartridge valves, manifolds, and custom hydraulic solutions engineered for demanding applications.

Design Features:

Fixed Displacement Gear Pumps .70-19.87 GPM with pressure balanced wear plates
Variable Displacement, Pressure Compensated Piston Pumps with factory preset compensator or remote compensator.
Pressures to 3000 PSI
Motors from .5 - 20 HP
Pump/Motor Adapters for NEMA 56C to 256TC Motors
Reservoirs from 10 - 60 Gallons
Pump/Motor shafts are joined by a flexible coupling to minimize noise, vibration, and alignment problems
Removable cover for ease of servicing
Available in a wide variety of options
All systems are 100% tested



Made in the USA

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Engineering Support



Short Lead Times

Custom Manifolds

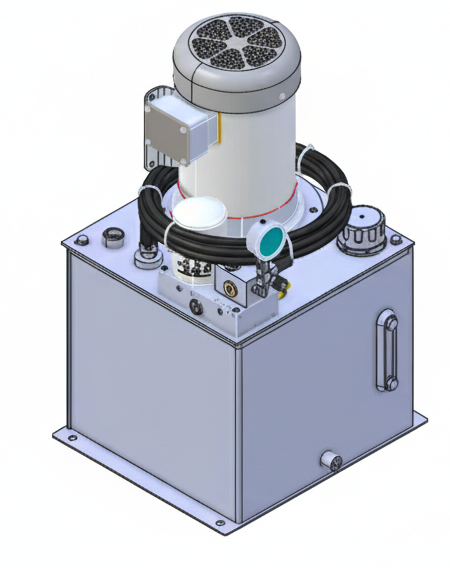

10 Gallon Unit

20 Gallon Unit

Technical Specifications

Pump Performance Data:

Series	CU. In./Rev	CC	GPM @
Series	CU. In./Rev	CC	1725	3600
06	0.275	4.5	2.05	4.29
08	0.384	6.3	2.87	5.98
09	0.5	8.2	3.73	7.79
10	0.671	11	5.01	10.46
11	0.732	13	5.47	11.41
12	0.976	16	7.29	15.21
13	1.159	19	8.65	18.06
14	1.343	23	10.03	20.93
15	1.523	27	11.37	23.74
16	2.01	33	15.01	31.32

4W/3P

Open Center

Build Your Power Unit

Selection Summary: Series Pump Pump Type Reservoir Reservoir Orientation Motor Manifold Relief Valve Directional Valve Filter Gauge Accessories

Series

Code	Description
K	Complete Power Unit in Kit Form
U	Complete Power Unit Assembled and Tested

Select

Pump

Code	Displacement / GPM @1800 RPM
01	0.07 cu in/rev
02	0.12 cu in/rev
03	0.16 cu in/rev - 1.19 GPM
04	0.20 cu in/rev - 1.50 GPM
05	0.31 cu in/rev - 2.33 GPM
06	0.27 cu in/rev - 2.05 GPM
08	0.38 cu in/rev - 2.87 GPM
09	0.50 cu in/rev - 3.73 GPM
10	0.67 cu in/rev - 5.01 GPM
11	0.73 cu in/rev - 5.47 GPM
12	0.97 cu in/rev - 7.29 GPM
13	1.16 cu in/rev - 8.65 GPM
14	1.34 cu in/rev - 10.03 GPM
15	1.52 cu in/rev - 11.37 GPM
16	2.01 cu in/rev - 15.01 GPM
17	0.50 cu in/rev piston pump - 3.8 GPM
18	0.964 cu in/rev piston pump - 7.2 GPM
19	1.355 cu in/rev piston pump - 10.12 GPM
07	Special

Select

Pump Type (G/P/V)

Code	Type
G	Gear Pump
P	Piston Pump
V	Vane Pump

Select

Reservoir

Code	Capacity
1	10 gallon reservoir
2	20 gallon reservoir
3	30 gallon reservoir
4	35 gallon reservoir
6	50 gallon reservoir
0	Without reservoir

Select

Reservoir Orientation (V/H)

Code	Orientation
V	Vertical reservoir
H	Horizontal reservoir

Select

Motor

Code	Spec
01	0.5 HP 1800 RPM 115/230 1 phase
02	0.5 HP 1800 RPM 230/460 3 phase
03	1 HP 1800 RPM 115/230 1 phase
04	1 HP 1800 RPM 230/460 3 phase
05	1.5 HP 1800 RPM 115/230 1 phase
06	1.5 HP 1800 RPM 230/460 3 phase
08	2 HP 1800 RPM 115/230 1 phase
09	2 HP 1800 RPM 230/460 3 phase
10	3 HP 1800 RPM 230/460 3 phase
11	5 HP 1800 RPM 230/460 3 phase
12	7.5 HP 1800 RPM 230/460 3 phase
13	10 HP 1800 RPM 230/460 3 phase
14	15 HP 1800 RPM 230/460 3 phase
15	20 HP 1800 RPM 230/460 3 phase
30	56C frame hardware
31	182TC frame hardware
00	No motor
07	Special

Select

Manifold

Code	Spec
01	P and T manifold with aux gauge port, relief cavity, filter port
02	D03 single station, aux gauge port, relief cavity, filter port
03	D06 single station, aux gauge port, relief cavity, filter port
04	2 station D03 parallel
05	3 station D03 parallel
06	4 station D03 parallel
08	5 station D03 parallel
09	2 station D05 parallel
10	2 station D05 parallel
07	Special

Select

Relief Valve

Code	Spec
1	Relief valve 300-4000 PSI, externally adjustable, pilot operated
0	Without relief valve

Select

Directional Control Valve

Code	Type
01	4W/3P D03 tandem center 110 VAC
02	4W/3P D03 open center 110 VAC
03	4W/3P D03 closed center 110 VAC
04	4W/3P D03 A and B to T center 110 VAC
05	4W/2P D03 110 VAC
06	4W/3P D05 tandem center 110 VAC
08	4W/3P D05 open center 110 VAC
09	4W/3P D05 closed center 110 VAC
10	4W/3P D05 A and B to T center 110 VAC
11	4W/2P D05 110 VAC
07	Special

Select

Filter

Code	Type
1	10 micron return spin-on
2	10 micron return spin-on with indicating gauge
3	25 micron return spin-on
4	25 micron return spin-on with indicating gauge
0	Without filter
7	Special

Select

Gauge Options

Code	Range
1	0-1000 PSI pressure gauge
2	0-2000 PSI pressure gauge
3	0-3000 PSI pressure gauge
4	0-4000 PSI pressure gauge
5	0-5000 PSI pressure gauge
6	Gauge isolator only
0	Without pressure gauge

Select

Accessories

Code	Accessory
1	Air cooled heat exchanger
2	Water cooled heat exchanger
3	In tank heater
0	No accessories
7	Special

Select

Start Your Solution Now

Take your operations to the next level with a custom-built DC hydraulic power unit, designed for your unique needs. Whether you need advanced control, robust performance, or seamless integration, our engineering team is ready to deliver a solution tailored specifically to your equipment and application. Contact us today to start your project, request a quote, or speak with our experts—let DC Hydraulics power your success!

Get My Custom Quote

Speak to a power unit expert
